Minimum Rating:
8.5 kVA
Maximum Rating:
11.5 kVA
This email address is being protected from spambots. You need JavaScript enabled to view it.
8.5 kVA
Maximum Rating:
11.5 kVA
Generator Set Specifications

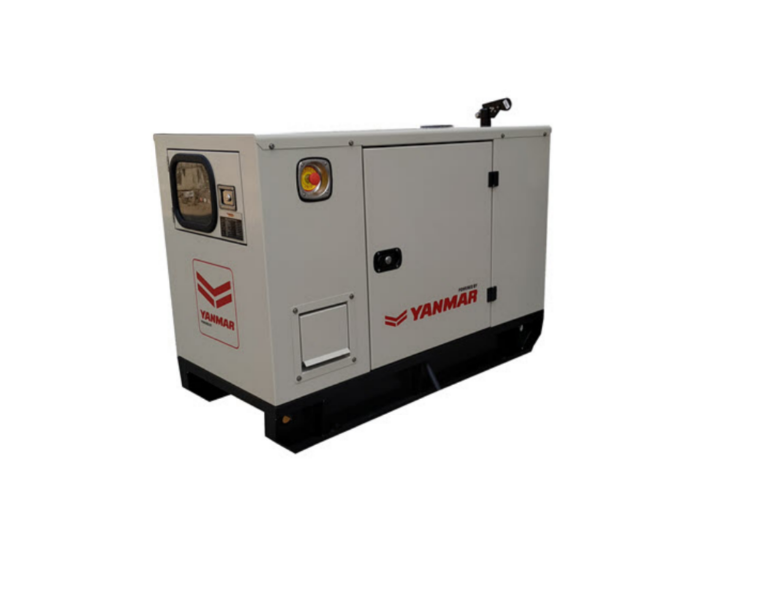

| Generator Model | YTG8500 |
| 50 Hz Prime (220V) | 8.5 kVA |
| 50 Hz Standby (220V) | 9.3 kVA |
| 60 Hz Prime (240V) | 10.5 kVA |
| 60 Hz Standby (240V) | 11.5 kVA |
| Rated Current 50Hz (Prime / Standby) | 38.6 A / 42.5 A |
| Rated Current 60Hz (Prime / Standby) | 47.7 A / 52.5 A |
| Frequency / Rated Speed | 50 Hz @ 3000 RPM / 60 Hz @ 3600 RPM |
| No. of Poles | 2 poles |
| Phase and Wire | 1-Phase 2-wire |
| Power Factor | 1.0 |
| Voltage Regulation | Within +/- 1.5 % |
| Excitation | Brushless, Rotating Exciter (with AVR) |
| Insulation | Class ‘H’ |
Engine Specification
| Engine Model | 3TNM72 |
| Type of Combustion Chamber | Direct Injection |
| Air Intake System | Natural Aspiration |
| Output Rating (kW) | 13.2 kW @ 3000 RPM (50 Hz) / 15.5 kW @ 3600 RPM (60 Hz) |
| Bore x Stroke | 72 x 74 mm |
| Displacement | 903 cm3 |
| No. of Cylinders | 3 |
| Fuel | Diesel Fuel ASTM 2D |
| Fuel Consumption (at 70% Load) | 2.9 L/hr (50 Hz) / 3.8 L/hr (60 Hz) |
| Lubricating Oil Capacity | 3.2 Liters |
| Coolant Capacity | 2.6 Liters |
| Fuel Tank Capacity | 76 Liters (sound proof) |
| Starting System | Electric Starting Motor (12V - 1.2kW) |
| Charging Generator | 12V - 40A |
| Battery Capacity | 12V - 65 x 1 Ah |
| Cooling System | Radiator with fan |
| Lubricating System | Forced lubrication with trochoid pump |
Yamagen Diesel Engine (Yanmar Engine)
Current technological advancements demand that everything be accessible quickly and from anywhere.
Alternator
We utilize two distinct Alternator brands: Stamford and Taiyo, which can be fully tailored to your specific needs and preferences.
Controller
To meet your demands alongside modern technological trends, we implement the ComAp Intelilite AMF25 controller. This enables comprehensive generator control not only from the main panel but also remotely via your smartphone through an internet connection.
Engine
- Yanmar diesel engine 3tnM72
- EUIIIa emissions compliant
Cooling
- Cooling package mounted radiator with 50°C high ambient capability
- Coolant drain line with internal brass ball control valve piped to base-frame
- 50% coolant antifreeze with corrosion inhibitor
Exhaust
- Integrated spark arresting silencer with flexible connectors, in separate compartment
Fuel
- 185 Liter Fuel Tank in Baskied
Alternator
- Stamford
- Coastal insulation protection
- 230 VAC anti-condensation heater option
Control Panel
- ComAp Intelilite AMF25
Mounting
- Generator set soft mounted using captive vibration mounts
- Heavy duty steel base frame contains integral double wall fuel tank
- Provides 110% spill containment of all engine fluids
Exhaust
- Industrial, Residential, Critical Silencers
Alternator
- Taiyo
- Stamford
Starting/Charging
- 12V battery charger
Communication
- RS485 module
- Ethernet Module
- 4G Module
- GPS Module
- Remote Display
ATS AMF
- Automatic Transfer Load Panel
