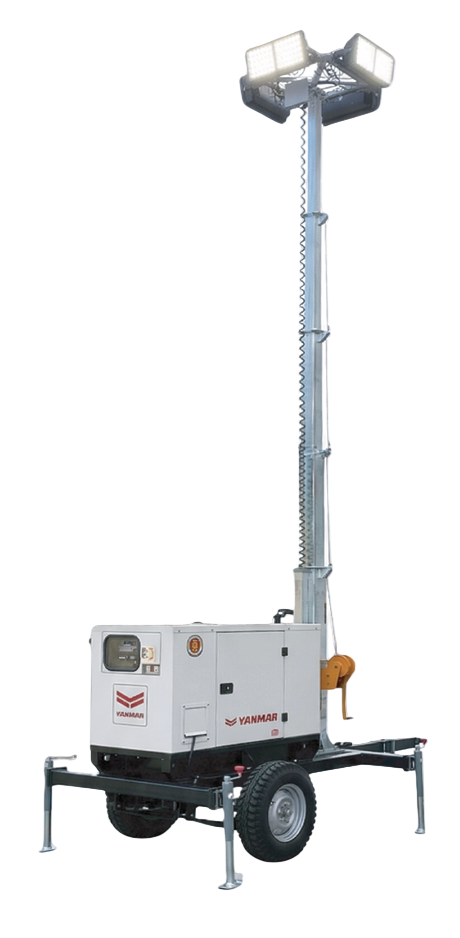

Mobile Tower Light Specifications
| Model | YTG6000-TL4 |
| Output Rating | 7.5 kVA |
| Frequency / Speed | 50 Hz / 1500 RPM |
| Voltage (2+N) | 220 V |
| Tire Size | 7.00-14C 100/991 (ban cangkul) |
| Light Tower Handling | Manual hand operated winch with safety brake |
| Maximum Height | 5-Section Telescopic Mast up to 6.77 m |
| Mast Type | Manual |
| Lamps Configuration | 4 x 500 W |
| Lamps Type | LED |
| Total Lumens | 4 x 65,000 lm = 260,000 lm |
| Maximum Dimensions (Working Mode) | L x W x H: 3559.5 x 2730 x 6770 mm |
| Minimum Dimensions (Working Mode) | L x W x H: 3559.5 x 1594 x 2770 mm |
| Total Weight | 970 kg |
Engine Specification
| Engine Model | 3TNV76 |
| Type of Combustion Chamber | Direct Injected |
| Air Intake System | Natural Aspiration |
| Bore x Stroke | 76 mm x 82 mm |
| Piston Displacement | 1115 cm3 |
| No. of Cylinders | 3 |
| Fuel Type | Diesel Fuel ASTM 2D |
| Fuel Consumption (100% Load) | 2.5 L/hr @ 50 Hz |
| Lubricating Oil Capacity | 3.5 L |
| Coolant Capacity | 1.0 L |
| Starting Motor | 12V - 0.9 kW |
| Charging Generator | 12V - 15A |
| Battery Capacity | 12V - 35 Ah x 1 |
| Starting System | Electric Starting Motor |
| Cooling System | Radiator with fan |
| Lubricating System | Forced lubrication with trochoid pump |
| Sound Level (from 1 meter / 7 meter) | 73 / 63 dBA |
Intelligent & Intuitive Design
The YTG6000-TL4 mobile tower light integrates a high-efficiency layout designed for rapid deployment, ease of transportation, and uncompromising job site lighting performance.
High-Output LED Illumination
Equipped with 4 ultra-bright 500W LED fixtures emitting a cumulative total of 260,000 lumens, ensuring broad and vivid spatial lighting coverage across challenging construction, mining, and industrial environments.
YANMAR Diesel Engine Reliability
The system is powered by a premium Yanmar TNV series water-cooled, 3-cylinder diesel engine. Engineered with an optimized direct-injection system, it ensures maximum thermal efficiency, low operational sound profiles, and minimal lifecycle costs.
Key Benefits
- Fuel Economy: Low consumption profile of just 2.5 L/hr at 100% operating workload reduces long-term refueling frequencies.
- Rugged Mobility: Heavy-duty off-road tires (ban cangkul) paired with robust multi-stage stabilization outriggers allow safe handling on rough terrain surfaces.
- Safe Operation: The 5-section telescopic mast extends smoothly up to 6.77 meters utilizing a manual hand-operated safety winch mechanism built with a mechanical fail-safe braking assembly.
Mast & Lighting System
- 4 x 500W High-Efficiency LED Lamps
- 5-Section manual heavy-duty telescopic mast
- Manual hand operated lift winch with integrated safety brake protection
Engine & Powertrain
- Yanmar 3TNV76 direct-injected diesel engine
- Integrated radiator cooling assembly with fan safety guards
- Trochoid pump forced lubricating mechanism
- 12V electric starting motor and matching charging alternator
Chassis & Mobility
- Rugged mobile trailer base frame configuration
- Heavy-duty 7.00-14C tires suitable for uneven terrain profiles
- Extendable stabilizer legs/outriggers for high-wind job sites
- Integrated battery containment tray with 12V terminal connectivity cables
Lighting Customization
- Automated dawn-to-dusk light sensor control switches
- Programmable digital timer setups
Chassis & Towing Accessories
- Adjustable height lunette ring or ball hitch couplers
- Custom hydraulic or pneumatic auto-mast lifting mechanism upgrades
- Heavy-duty maintenance-free battery variants
