Output Rating:
7.5 kVA
This email address is being protected from spambots. You need JavaScript enabled to view it.
7.5 kVA

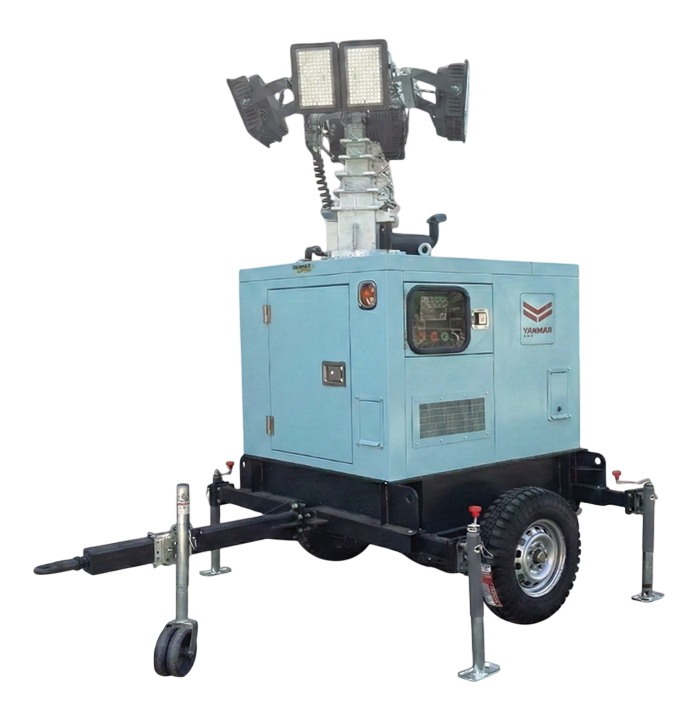

Mobile Tower Light Specifications
| Model | YTG15TL-TLD5 |
| Output Rating | 7.5 kVA |
| Frequency / Rated Speed | 50 Hz @ 1500 RPM |
| Fuel Tank Capacity | 165 Liters |
| Tire Size | 7.00-14C 100/991 |
| Light Tower Handling | Easy operation with full Hydraulic system |
| Mast Tower | 5-Section Telescopic Mast up to 7.5m, 315 degree rotation |
| Standard Tower Height | 7500 mm |
| Floodlight | 4 x 500 W LED 60 degree Light, 65,000 LM |
| Floodlight Protection Rating | IP66 |
| Luminous Efficiency | 130 LM/W |
| Overall Dimension (approx.) LxWxH | 2912 mm x 1800 mm x 2900 mm |
| Sound Level (from 1 meter / 7 meter) | 85 / 78 dBA |
Engine Specification
| Engine Model | 3TNV88 |
| Type of Combustion Chamber | Direct Injection |
| Air Intake System | Natural Aspiration |
| Bore x Stroke | 88 mm x 90 mm |
| Piston Displacement | 1642 cm3 |
| No. of Cylinders | 3 |
| Fuel Type | Diesel Fuel ASTM 2D |
| Fuel Consumption (100% Load) | 3.59 L/hr |
| Lubricating Oil Capacity | 6.7 L |
| Coolant Capacity | 2.0 L |
| Starting Motor | 12V - 1.2 kW |
| Charging Generator | 12V - 40A |
| Battery Capacity | 12V - 65Ah x 1 |
| Starting System | Electric Starting Motor |
| Cooling System | Radiator with fan |
| Lubricating System | Forced lubrication with trochoid pump |
Full Hydraulic Mast Handling
Engineered for effortless setup and rapid field deployment using a comprehensive 5-section telescopic hydraulic mast layout. The structural tower configuration extends seamlessly up to 7.5 meters with 315-degree rotation for targeted high-illumination setups.
High-Efficiency LED Floodlights
Equipped with a premium configuration of 4 x 500W LED floodlights delivering a high-intensity output of 65,000 lumens. Features an IP66 ingress protection rating and a 60-degree beam angle operating at a luminous efficiency of 130 LM/W.
YANMAR Powered Reliability
The core system utilizes a precision-engineered Yanmar 3TNV88 industrial diesel engine designed for heavy-duty field operation. Built with a focus on fuel efficiency, durability, and robust operating cycles under demanding project site conditions[cite: 3, 4].
Key Benefits
- Optimized Fuel Economy: Advanced direct injection engine technology guarantees optimal thermal atomization, capping consumption at 3.59 L/hr under full load.
- Mobility & Field Handling: Features integrated heavy-duty transport tires (7.00-14C) optimized for secure structural towing across diverse terrain.
- Sustained Autonomous Run-Time: An extra-large integrated 165-liter fuel tank enables extended illumination periods without constant refueling stops.
Engine & Cooling
- Electric Starting Motor (12V - 1.2 kW)
- Radiator with fan cooling mechanism
- Forced lubrication with trochoid pump
- Engine pre-filled with technical lubricating oil and coolant mixture[cite: 3, 4]
Mast & Lighting System
- 5-Section Telescopic Mast handling setup up to 7500 mm
- Integrated full hydraulic tower deployment mechanism
- 4 x 500 W IP66 LED floodlight assembly
Chassis & Mobile Trailer
- Heavy-duty mobile trailer configuration with dual 7.00-14C tires
- Integrated 165L high-capacity fuel storage tank
- Pre-installed battery tray, terminal cable links, and matching 12V-65Ah battery[cite: 3, 4]
Tower Customization
- Automated dawn/dusk light sensor activation modules[cite: 4]
- Custom outrigger stabilizing configurations for extreme wind ratings[cite: 4]
Engine & Trailer Upgrades
- Smart automated utility battery charger units[cite: 4]
- Spare tire kits and alternative heavy-duty hitch couplers[cite: 4]
