4.2 kVA
Maximum Rating:
4.6 kVA
Generator Set Specifications

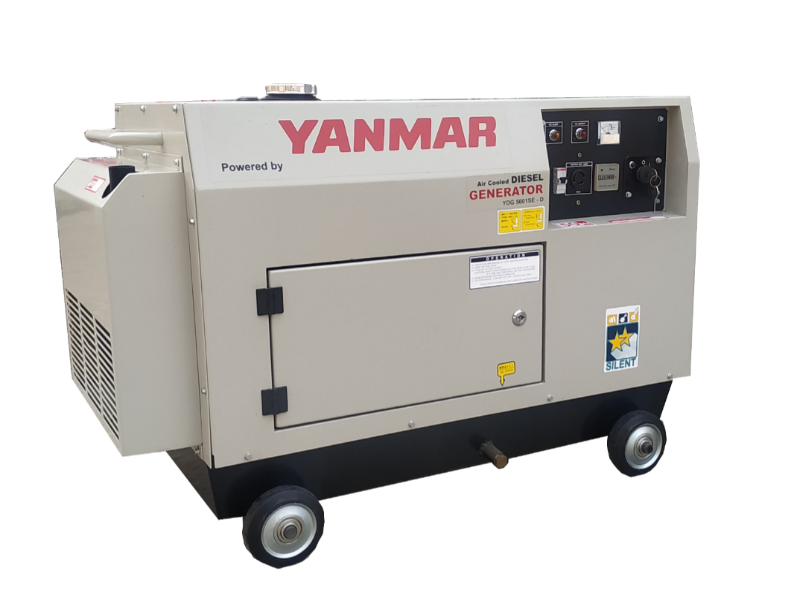

| Generator Model | YDG5001SE-D |
| 50 Hz Prime (220V) | 4.2 kVA |
| 50 Hz Standby (220V) | 4.6 kVA |
| Rated Current 50Hz (Prime / Standby) | 19.1 A / 21.0 A |
| Frequency / Rated Speed | 50 Hz @ 3000 RPM |
| No. of Poles | 2 poles |
| Phase and Wire | 1-Phase 2-wire |
| Power Factor | 1.0 |
| Voltage Regulation | Within +/- 1.5 % |
| Excitation | Self Exiting Field Rotating Auto Voltage Regulator (AVR) |
| Insulation | Class ‘H’ |
Engine Specification
| Engine Model | L100N5 |
| Type of Combustion Chamber | Direct |
| Air Intake System | Natural Aspiration |
| Output Rating (kW) | 5.7 kW @ 3000 RPM (50 Hz) |
| Bore x Stroke | 86 x 75 mm |
| Displacement | 435 cm3 |
| No. of Cylinders | 1 |
| Fuel | Diesel Fuel ASTM 2D |
| Fuel Consumption (at 100% Load) | Approx. 1.2 L/hr (50 Hz) |
| Lubricating Oil Capacity | 1.65 Liters |
| Coolant Capacity | – (Air Cooled) |
| Fuel Tank Capacity | 16 Liters (sound proof) |
| Starting Motor | 12V – 0.9 kW |
| Charging Generator | 12V – 15 A |
| Battery Capacity | 12V – 35 x 1 Ah |
| Starting System | Electric Starting Motor |
| Cooling System | Forced Air by Flywheel Fan |
| Lubricating System | Forced lubrication with trochoid pump |
Dimensions & Noise levels
| Soundproof Dimension (L x W x H) | 1110 x 550 x 766 mm |
| Approx. Dry Weight | 200 kg |
| Sound Level dBA from 1 meter / 7 meter | 79 / 69 dBA |
Yanmar Air-Cooled Diesel Engine (L-N Series)
Fuel costs dip to a new low with Yanmar's refined direct fuel injection system. Utilizing an advanced, micro-sized fuel injection layout developed through years of research, it succeeds in minimizing size and complexity through a brushless pump and smaller nozzle configuration.
Silent Operation & Compact Layout
The noise-proofing cabinet enclosure makes this generator exceptionally welcome in any location, especially during night-time operation. Exhaust noise is heavily dampened by an oversized built-in silencer, while structural mechanical engine sounds are successfully contained via a specialized double-wall framework and a sound-deadening absorption liner.
Smooth Running & Alarm Systems
To heavily restrict both vertical and horizontal unit vibrations, the entire engine and generator package rests comfortably on advanced high-efficiency inclined rubber isolation blocks. For absolute peace of mind, an integrated oil protection alarm automatically halts the engine the split second oil levels fall below standard operating limits.
Engine
- Yanmar L100N5 direct-injection diesel engine
- Vertical, 4-cycle, air-cooled system structure
- Convenient integrated recoil starter alongside primary electric start
Cooling & Lubrication
- Forced air cooling management via robust flywheel fan configuration
- High-durability forced lubrication system utilizing a dedicated trochoid pump unit
Exhaust & Safety
- Fully enclosed, high-capacity quiet muffler assembly with protective safety shield
- Recessed industrial-grade power distribution sockets integrated directly onto the control panel layout
- Low oil pressure monitoring alarm system with automatic engine shutdown functionality
Mounting & Enclosure
- Premium heavy-duty double-wall soundproof cabinet assembly
- High-efficiency inclined rubber vibration-isolation blocks reducing mechanical strain
- Heavy-duty mobile utility configuration complete with integrated transit wheels
Exhaust
- Industrial, Residential, Critical Silencers
Alternator
- Taiyo
- Stamford
Starting/Charging
- 12V battery charger
Communication
- RS485 module
- Ethernet Module
- 4G Module
- GPS Module
- Remote Display
ATS AMF
- Automatic Transfer Load Panel
