Minimum Rating:
40 A
Maximum Rating:
125 A
This email address is being protected from spambots. You need JavaScript enabled to view it.
40 A
Maximum Rating:
125 A
Rating & Dimension
| Model | Rating ( Ampere ) | Dimension |
|---|---|---|
| ATS1530DA | 40 A | 650 mm x 410 mm x 260 mm |
| ATS4050DA | 100 A | 650 mm x 410 mm x 260 mm |
| ATS6575DA | 125 A | 650 mm x 410 mm x 260 mm |

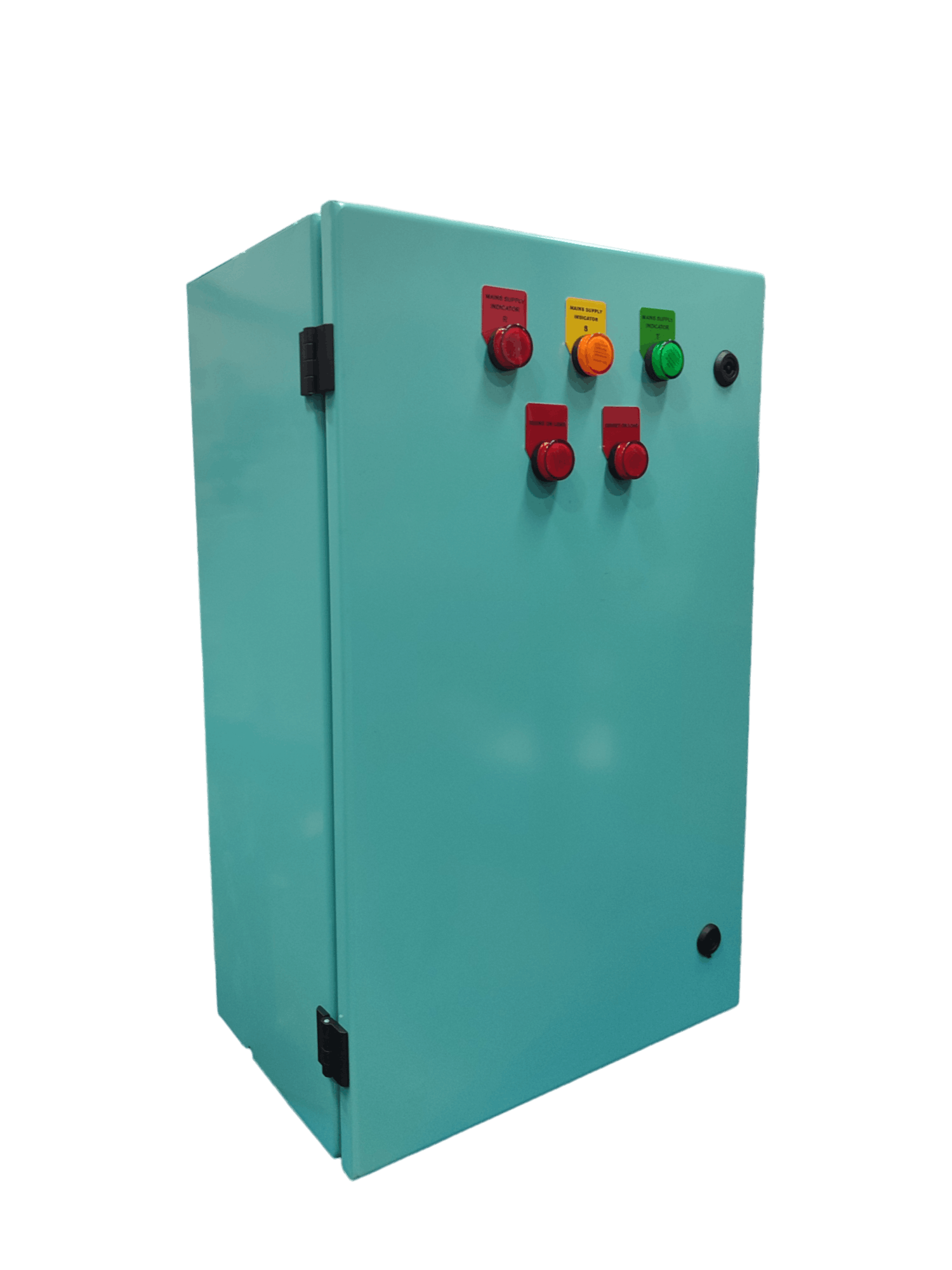

Motorized & Automatic Transfer Switch Features
| Operation Modes | Automatic and Manual operation mode |
| Manual Override | Manual switch operation via button and external handle |
| Battery Charger | Included |
| Status Indication | LED display status indication |
| Interface/Connectivity | 2 remote start cables, free contact |
| System Compatibility Note | Genset key start controller must be upgraded to autostart module controller |
Reliable Dual-Mode Control
The panel features full versatility with support for both automatic and manual operation modes. Operators can safely command manual switch adjustments using a local button control interface alongside a robust external physical handle.
Integrated System Diagnostics
Monitoring the vital health of your electrical infrastructure is simple and seamless thanks to a built-in LED display configuration dedicated to showing clear system status indications. The layout is optimized to provide uncomplicated, easy overall operation.
Control Panel
- ComAp Intelilite AMF25 digital controller module
Motorized Switch
- ABB motorized changeover mechanism core
Battery Charger
- Comap Inteli Charger specialized unit
Auxiliary Upgrades
- Autostart module controller upgrade (required if replacing a standard key start controller setup)
