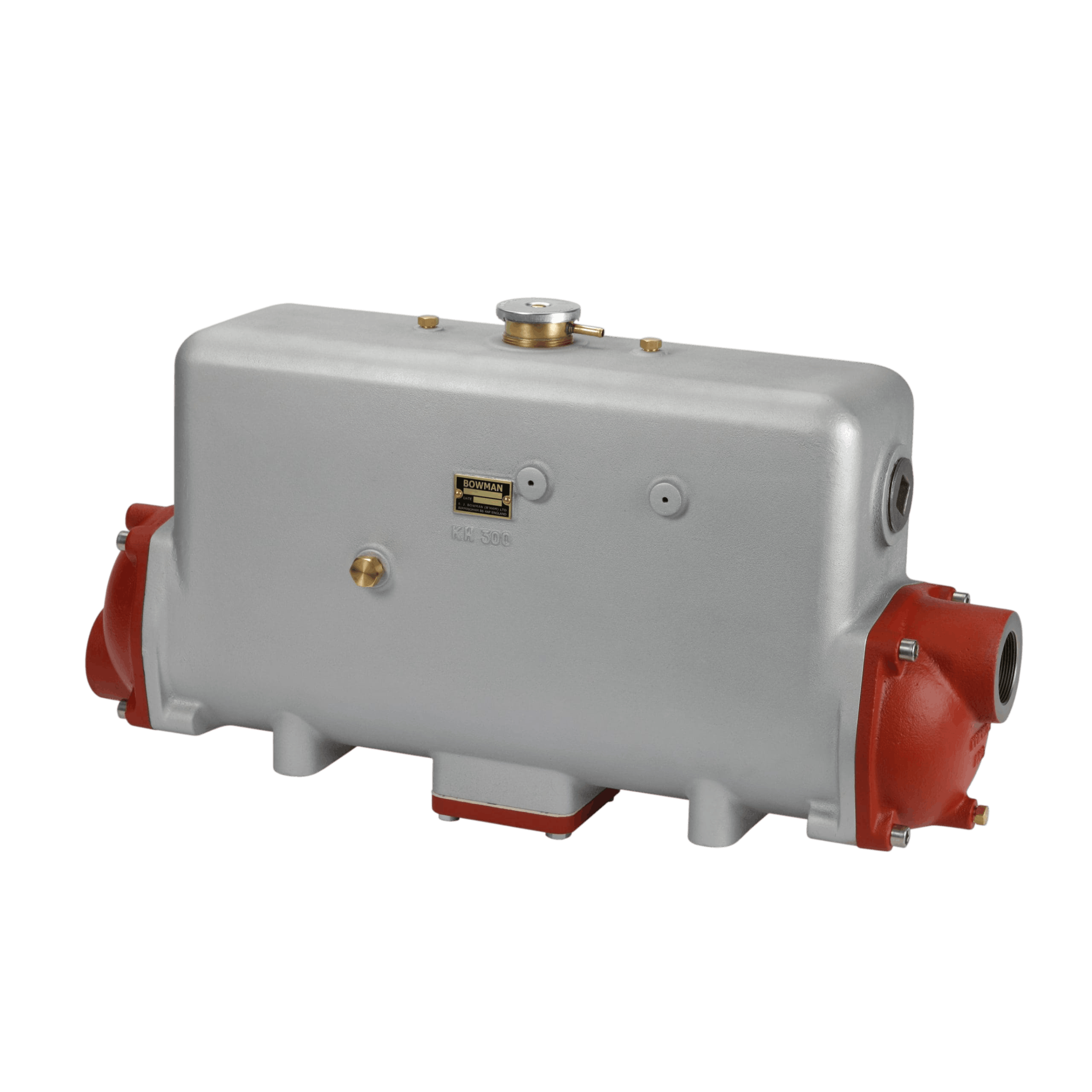

Bowman Header Tank heat exchangers are engineered for cooling marine propulsion and stationary land-based engines where traditional air cooling is unavailable or inappropriate. Offering a compact cooling alternative to air blast radiators, they consistently maintain correct engine operating temperatures while optimizing engine packaging space.

Key Benefits

1. Unique Design & Quiet Zone
   • Features a unique 'quiet zone' design with an integrated de-aeration system and a pressurized filler cap to maximize thermal performance.
2. Reliable Operation
   • The larger reservoir area located above the tube stack eliminates potential air pockets or air locks within the coolant stream, dramatically increasing structural operational reliability.
3. Fully Floating Tubestack
   • The fully floating design allows free expansion and contraction of the tubestack components within the cast body, significantly minimizing thermal stress and extending operational longevity.
4. Simple to Maintain
   • Easily removable tubestack units and end covers make routine cleaning, visual inspections, and field maintenance straightforward.
5. Versatile & Wide Range
   • Available in comprehensive configuration pass-options (single, double, or triple pass configurations) to suit diverse raw water flow rates and environmental conditions.

Key Features & Guidelines

• Flexible Applications: Tailored variants to process salt water, fresh water, or mineral-rich contaminated cooling streams safely.
• Mounting Rule: Must always be securely mounted above the engine's cylinder head level.
• Self-Venting Assembly: Design allows the engine circuit to remain fully self-venting on initial system filling.
• Thermostat Recommendation: A bypass-type thermostat should be deployed to ensure correct flow configuration when the engine is running cold; standard automotive type fill-interruption thermostats are not recommended.
