Full Specifications
Mobile Lighting Tower Specifications
Mobile Lighting Tower model |
YDG5001SE-D-TLD4 |
Output rating |
4.2 kVA |
Frequency / RPM |
50 Hz / 3000 RPM |
Run time with 3 lights (2 kW each) |
32 hours |
Tire size |
10″ x 3.5″ Heavy Duty type |
Light tower handling |
Easy hand operated winch with safety brake |
Mast Tower |
5-Section Telescopic Mast up to 5.5m |
Standard tower height |
5500 mm |
Floodlight |
4 x 400 W LED Light 40k lm equals to 4×1000 Metal Halide IP65 LED |

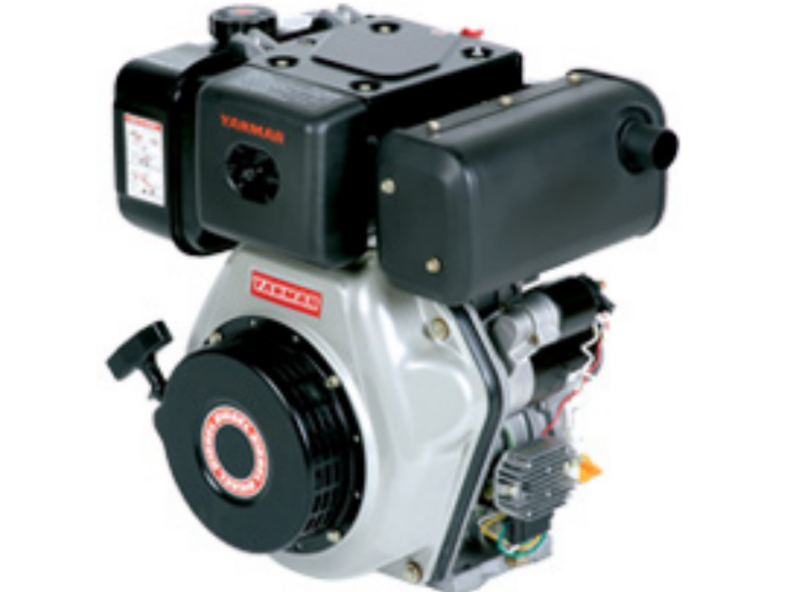

Engine Specifications
Engine Model |
L100N5 |
|
Type of combustion chamber |
Direct Injection |
|
Air intake system |
Natural Aspiration |
|
Bore (mm) x stroke (mm) |
86 x 75 |
|
Piston displacement (cm3) |
435 |
|
No. of cylinders |
1 |
|
Fuel |
Diesel Fuel ASTM 2D |
|
Fuel consumption (L/hr) at 100% load |
50 Hz |
1.6 |
Lubricating oil capacity (L) |
1.6 |
|
Coolant capacity (L) |
2.0 |
|
Fuel tank capacity (L) |
20 |
|
Starting motor (v-kW) |
12 – 1.2 |
|
Charging generator (V-A) |
12 – 40 |
|
Battery capacity (V-Ah) |
12 – 65 x 1 |
|
Starting system |
Electric Starting Motor |
|
Cooling system |
Radiator with fan |
|
Lubricating system |
Forced lubrication with trochoid pump |
|
Sound Level dBA from 1 meter / 7 meter (dBA) |
85 / 75 |
|
