Full Specifications
Mobile Lighting Tower Specifications
Mobile Lighting Tower model |
MLT12S |
Output rating |
12 kVA / Single Phase 220 VAC |
Frequency / RPM |
50 Hz / 1500 RPM |
Run time with 4 lights (2 kW each) |
24 hours |
Light Tilt |
2 way Tilt via panel on Hydraulic |
Mass Rotation |
360 Degree |
Mast Tower |
3-Section Aluminium Alloy Telescopic Mast 9M |
Lighting Tower handling |
Hydraulic with Electronic Solenoid valve controlled |
Hydraulic Safety |
Safety Limit Switch |
Fuel Filling System |
Fastfill system fuel port |
Electrical Safety |
External IP65 Isolator & Lock out system |
Maximum tower height (ground level to top most) |
9500 mm |
Floodlight |
4 x 2000 W metal halide lamps with aluminium reflector housing & tempered impact resistant glass lenses, 756.000 Lumens in total |

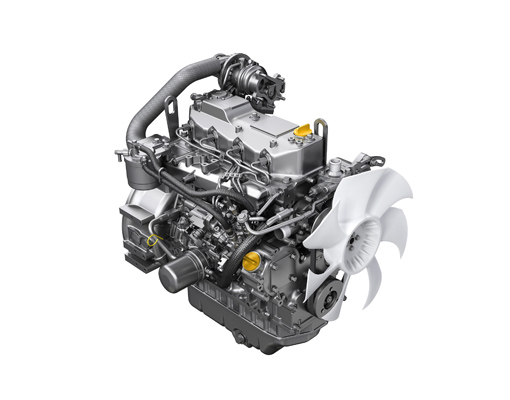

Engine Specifications
Engine Model |
4TNV84T |
|
Type of combustion chamber |
Direct Injection |
|
Air intake system |
Turbocharged |
|
Bore (mm) x stroke (mm) |
84 x 90 |
|
Piston displacement (cm3) |
1995 |
|
No. of cylinders |
4 |
|
Fuel |
Diesel Fuel ASTM 2D |
|
Fuel consumption (L/hr) at 100% load |
50 Hz |
5.57 |
Lubricating oil capacity (L) |
7.4 |
|
Coolant capacity (L) |
2.7 |
|
Fuel tank capacity (L) |
170 |
|
Starting motor (v-kW) |
12 – 1.2 |
|
Charging generator (V-A) |
12 – 40 |
|
Battery capacity (V-Ah) |
12 – 65 x 1 + External Battery Switch |
|
Starting system |
Electric Starting Motor |
|
Cooling system |
Radiator with fan |
|
Lubricating system |
Forced lubrication with trochoid pump |
|
Sound Level dBA from 1 meter / 7 meter (dBA) |
73 / 64 |
|
