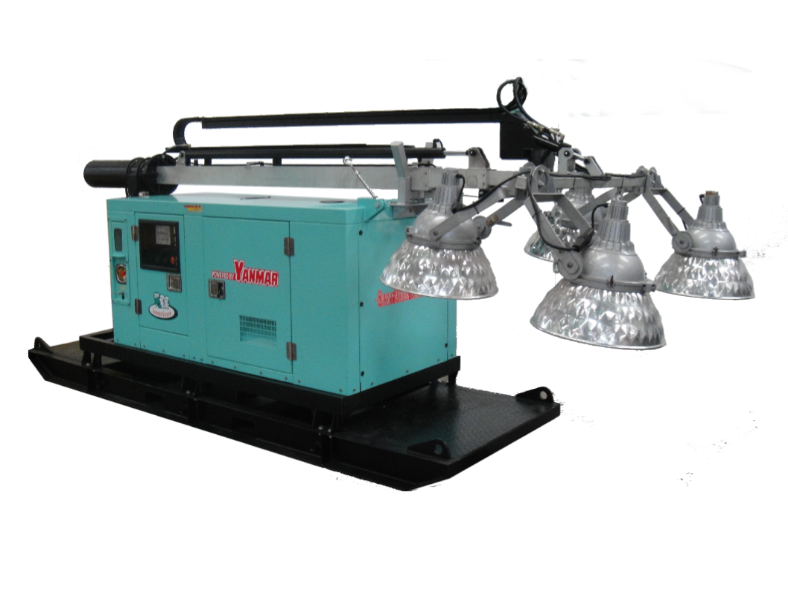

MLT12S

Download
Specification &
Dimension:

Mobile tower light model
MLT12S
Output rating
12 kVA / Single Phase 220 VAC
Frequency / RPM
50 Hz / 1500 RPM
Run time with 4 lights (2 kW each)
24 hours
Light Tilt
2 way Tilt via panel on Hydraulic
Mass Rotation 360 Degree
Mast Tower 3-Section Aluminium Alloy Telescopic Mast 9M
Light tower handling
Hydraulic with Electronic Solenoid valve controlled
Hydraulic Safety Safety Limit Switch
Fuel Filling System Fastfill system fuel port
Electrical Safety External IP65 Isolator & Lock out system
Maximum tower height (ground level to top most)
9500 mm
Floodlight
4 x 2000 W metal halide lamps with aluminium reflector housing & tempered impact resistant glass lenses, 756.000 Lumens in total
Overall Skid Dimension (approx.)
Length
4746 mm
Widh
1210 mm
Height
1950 mm
Weight 1500 kg (wet)
Engine Model
4TNV84T
Type of combustion chamber
Direct Injection
Air intake system
Turbocharged
Bore (mm) x stroke (mm)
84 x 90
Piston displacement (cm3)
1995
No. of cylinders
4
Fuel
Diesel Fuel ASTM 2D
Fuel consumption (L/hr) at 100% load
50 Hz
5.57
Lubricating oil capacity (L)
7.4
Coolant capacity (L)
2.7
Fuel tank capacity (L)
170
Starting motor (v-kW)
12 – 1.2
Charging generator (V-A)
12 – 40
Battery capacity (V-Ah)
12 – 65 x 1 + External Battery Switch
Starting system
Electric Starting Motor
Cooling system
Radiator with fan
Lubricating system
Forced lubrication with trochoid pump
Sound Level dBA from 1 meter / 7 meter (dBA)
73 / 64

​
