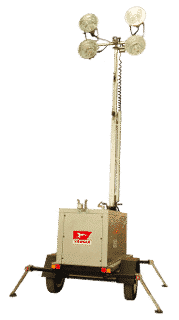

Mobile tower light model
|
MLT12 | |
|
Output rating
|
12 kVA / Single Phase 220 VAC
|
|
|
Frequency / RPM
|
50 Hz / 1500 RPM
|
|
|
Run time with 4 lights (2 kW each)
|
12 hours | |
|
Tire size
|
215/65R16 c/w Hand Brake | |
| Landing Foot | 4 Mechanical Jack adjustable angle | |
|
Light tower handling
|
Hydraulic with Electronic Solenoid valve controlled | |
|
Maximum tower height (ground level to top most)
|
9500 mm | |
| Mast Tower | 3-Section Aluminium Alloy Telescopic 9M, can be rotated 360 degree | |
|
Floodlight
|
4 x 2000W metal halide lamps with aluminium reflector housing & tempered impact resistant glass lenses, 756.000 Lumens in total | |
|
Overall Dimension (approx.)
|
Length
|
4461 mm
|
|
Widh
|
1960 mm
|
|
|
Height
|
1985 mm
|
|
| Weight | 1450 kg (wet) | |
|
Engine Model
|
4TNV84T
|
|
|
Type of combustion chamber
|
Direct Injection
|
|
|
Air intake system
|
Turbocharged
|
|
|
Bore (mm) x stroke (mm)
|
84 x 90
|
|
|
Piston displacement (cm3)
|
1995 | |
|
No. of cylinders
|
4 | |
|
Fuel
|
Diesel Fuel ASTM 2D
|
|
|
Fuel consumption (L/hr) at 100% load
|
50 Hz
|
5.57 |
|
Lubricating oil capacity (L)
|
7.4 | |
|
Coolant capacity (L)
|
2.7
|
|
|
Fuel tank capacity (L)
|
100
|
|
|
Starting motor (v-kW)
|
12 – 1.2
|
|
|
Charging generator (V-A)
|
12 – 40
|
|
|
Battery capacity (V-Ah)
|
12 – 65 x 1
|
|
|
Starting system
|
Electric Starting Motor
|
|
|
Cooling system
|
Radiator with fan
|
|
|
Lubricating system
|
Forced lubrication with trochoid pump
|
|
|
Sound Level dBA from 1 meter / 7 meter (dBA)
|
73 / 64
|
|
​
